Evaporative Cooling
Factory Ventilation. Warehouse Cooling.
Evaporative Cooling
Warehouse cooling, factory ventilation, shop ac, office climate control; evaporative cooling does it all. Superbly.
Evaporative cooling is the answer for factory cooling and warehouse ventilation, And not just for warehouse cooling, evap cooling is the air conditioner that is also perfect for shop ventilation, office cooling and workshop ventilation.
Evap coolers may be called many things – evaporative air conditioner, swamp cooler, factory air cooler, however there is just one name to remember when it comes to evap cooling, Clean Air!
Choose a better evap cooler contractor
Fact is, Clean Air have been installing and maintaining evaporative coolers since 1998. And we are very good at it. We may well have installed more evap coolers than any other evaporative cooling company in the UK. And the vast majority of our business is repeat business from evaporative cooling clients of old.
The best evaporative cooler in the UK?
We may be a little biased here, but the evaporative cooling manufacturer we chose to become UK distributor for is CoolBreeze, the Australian manufacturer of the legendary Maxima Evaporative Air Conditioner.
We carry large stocks of both evap cooler units and spares. Which means that if you are looking for fast factory cooling or warehouse ventilation, Clean Air can do it.
Factory cooling? More Cool, Less Cost
For warehouse cooling, factory ventilation, workshop cooling, shop cooling and office cooling, evaporative cooling is the default choice. And for service, experience and value Clean Air are the go to evap cooling experts.
Call, Contact Us or Book your Free Evaporative Cooling Site Survey today.

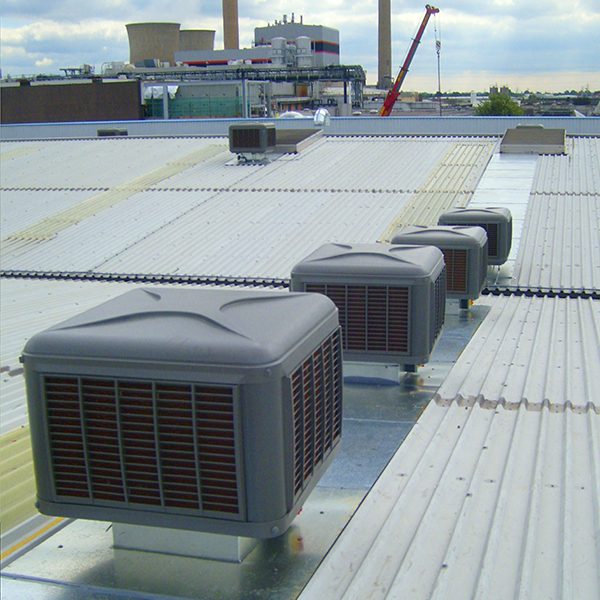

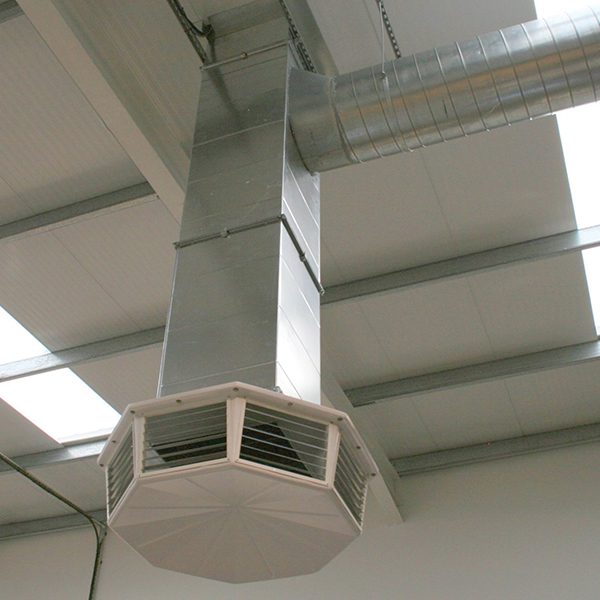

Warehouse Cooling
Evap cooling offers ventilation for big spaces at a low cost…

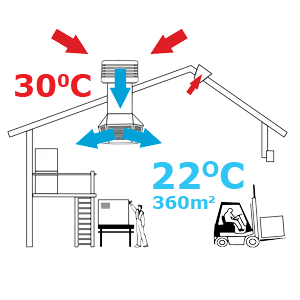

Evaporative Cooling is the answer for factory cooling, warehouse cooling and shop cooling; as well as ventilation for large spaces. An evaporative cooler delivers reliable, high power cooling and ventilation to your workplace at a fraction of the cost of traditional air conditioning.

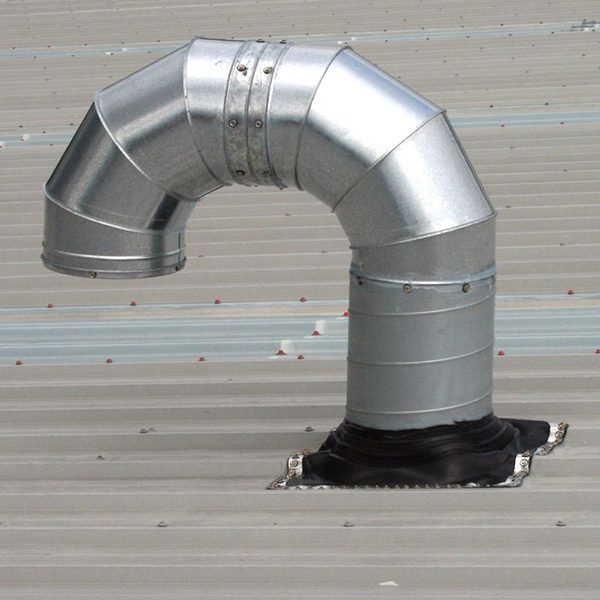

Evaporative air coolers use only fresh air and chilling pads to deliver a powerful and continuous flow of fresh, filtered cool air. Hot air, along with pollutants, are expelled through roof vents, open windows or doors (yes, these can be left open!).
This is cooling and ventilation in one highly efficient and economical air change unit.
Call, Contact Us or Book your Free Site Survey today.
Why Evap Cooling ticks all boxes
Ten Reasons to choose a Evaporative Air Conditioner
- Each evap cooler can lower the internal temperature of 360 m2 by up to 10°C*
- Evap coolers deliver a constant flow of fresh air to ventilate (≤10,781 m3 per unit per hour)*
- Evap cooling units consume approx. 80% less power than traditional air con
- As evaporative AC units cool and ventilate, hot and stale air is ejected
- An evaporative air conditioner can cost from as little as £1 +vat a day to run*
- Prices start at just £8000+vat per unit and this includes installation*
- Evap cooling is more environmentally friendly - it uses water and contains no CFCs
- Evap cooling units can be used with roller doors and windows open
- Evaporative coolers have superb spot-cooling capability
- Evaporative air conditioners are whisper quiet
The Natural Choice for Evaporative Air Cooling
Clean Air sell, install and maintain evap cooling systems. Brilliantly.
Clean Air were one of the first to supply commercial evap air coolers to the UK. It is quite likely we have installed more evaporative cooling units in the UK than any other HVAC contractor.
Clean Air are the Official UK Distributor for Air Group Australia, manufacturer of the incredible Cool Breeze Maxima QMD230 Evaporative Cooler.
the right kit installed by the right team, that’s Clean Air

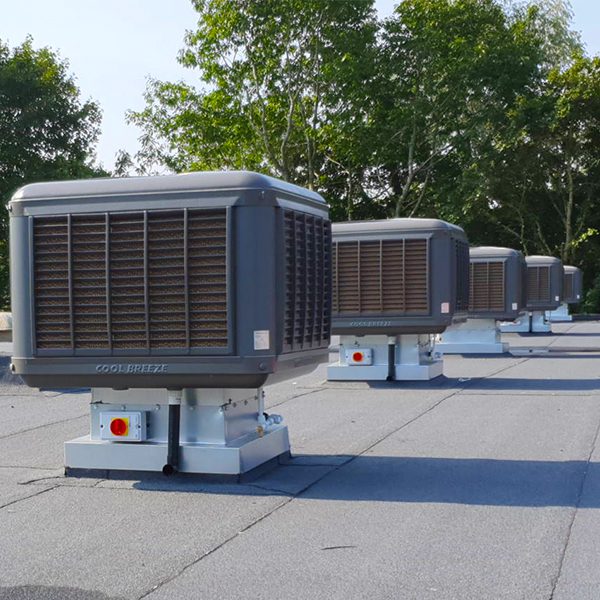

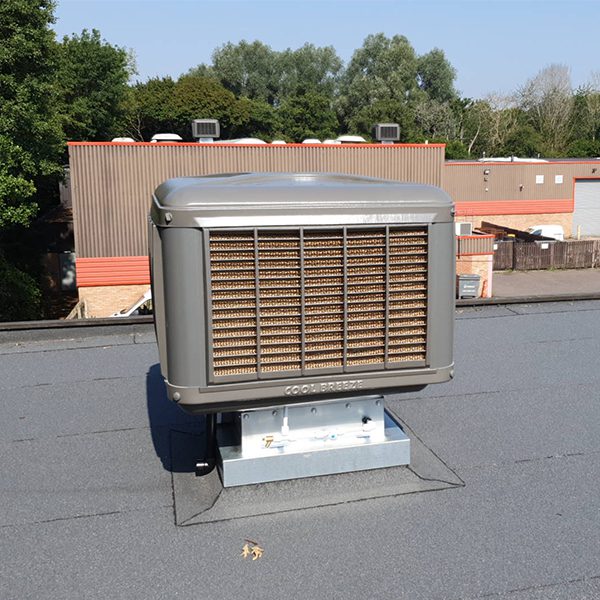

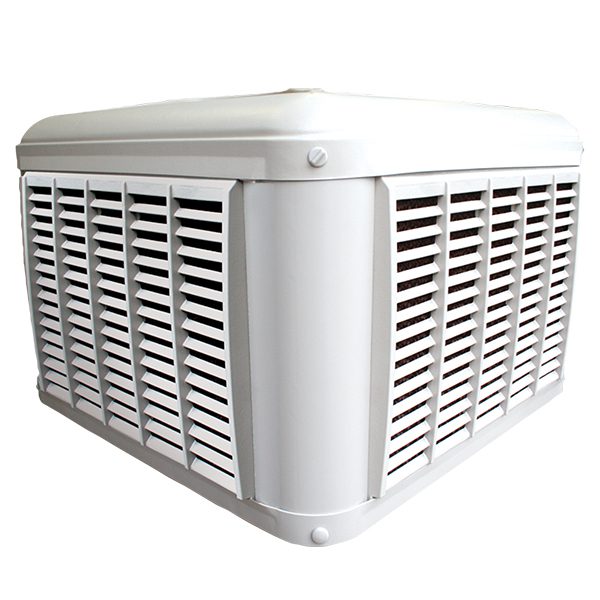

CoolBreeze QMD230 Maxima
For fast and effective cooling and ventilation at a low cost, the Cool Breeze Maxima is the evaporative cooler to beat.
This is cooling and ventilation in one highly efficient and economical air change unit.
With its superior fan performance, high capacity Teco motors and massive cooling pads to maximise evaporation, the Maxima delivers BIG on every count.
- BIG on ventilation
- BIG on cooling
- BIG on energy savings
More puff, less hot air
For warehouse or factory cooling nothing beats evaporative cooling, and especially the Cool Breeze Maxima evaporative cooler. Arrange a site survey with our specialist engineers today and learn more about how the Maxima can help you.

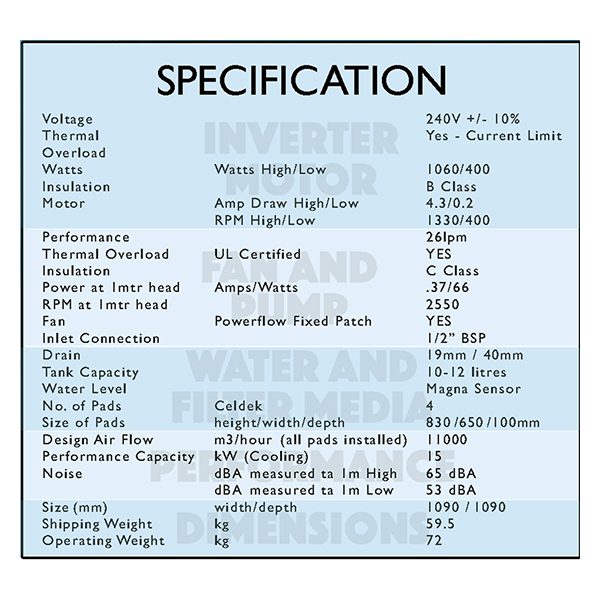

Power to Perform… Take it to the Max
- DELIVERS 10,781 m3 of fresh filtered air every hour*
- INVERTER motor runs at just 3.75A to lower running costs by up to 33% †
- COOL BREEZE MAXIMA unit runs at less than 0.8kW thanks to 0.715kW motor
- OPERATES at temperatures as low as 20 degrees
- PRECISE comfort control with 100% variable speed control
- QUIET operation for lower noise intrusion
- VENTILATION & AIR COOLING from a single high power unit
- NO CFC’s and minimal energy demands.
Key Features

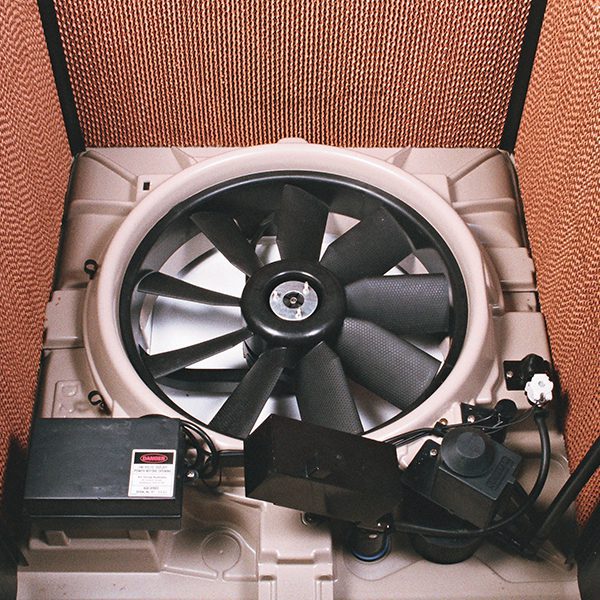

Manufactured by Teco Australia. The motor features quality Japanese bearings with ultra high temperature grease with a protected bearing life in excess of 30,000 hours.
The overall motor service life is projected to be in excess of 10 years, based on average annual usage.
Mounting the motor after the fan blade ensures the highest air velocity over the motor. This maximises cooling and prevents moisture.
The new CoolBreeze MAXIMA QMD230 features inverter technology for even greater cost savings on power usage, and functional performance. The Maxima is whisper quiet and allows for precise control of airflow.

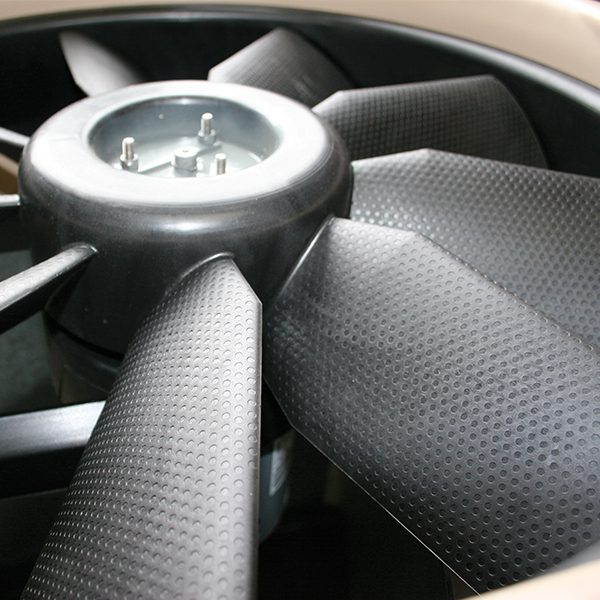

The QAD230 features a unique powerflow fan with “golf ball” dimpled blades which increases fan efficiency and air flow.
To ensure vibraton free operation and longer life every Teco-Westinghouse direct drive motor features a matched and individually balanced fan.
At typical velocities of 1.7m/sec, the pressure drop through the Cool Breeze cellulose pads is 20Pa.

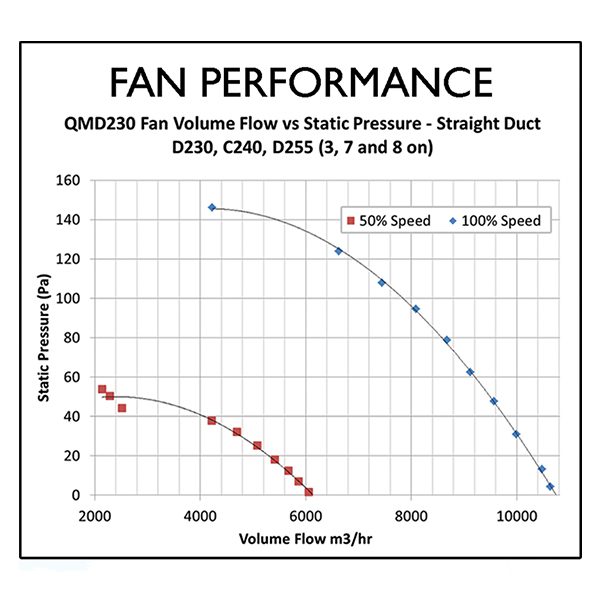

The QAD230 is the only evaporative cooler available in the UK with published BRIA test results. The fan curve shows a flat rate of 0Pa with all pads in place.
A pressurised high flow SuperPump facilitates an industry leading water delivery rate for quick and effective filter media saturation, as well as blockage free operation.
Electronic regulation of water level by measurement of ‘magnetic hall effect’ gives a consistent water level accurate to within 1mm. No adjustment is required and there are no rubber washers to wear or probes to corrode.
The computer controlled water management system features a patented Magna Sensor drain valve for superior performance, reliability and a maintenance-free long life.
The Magna Sensor uses the simple counterweight principle of a tank of water and leverage to open and close the valve. There is virtually nothing to break or wear. The valve uses a magnetic field principle to determine water level.
A regular flush and drain cycles ensures the water in the air conditioner reservoir is drained to help ensure it remains clean and fresh.

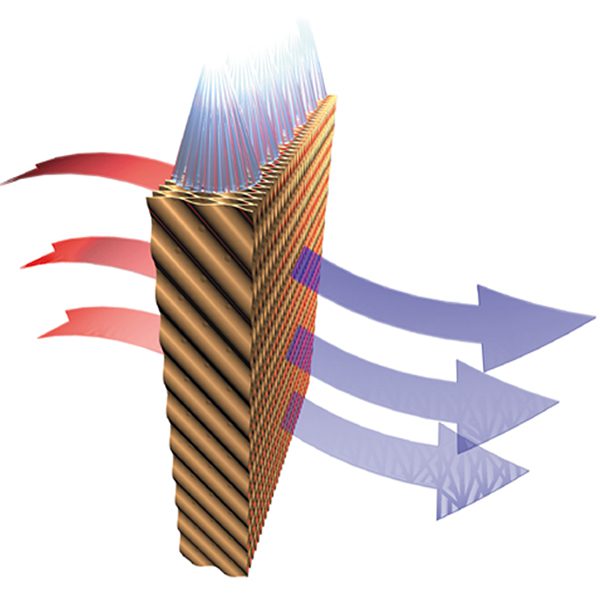

The QAD230 utilises a long-life, self supporting cellulose pad, impregnated with anti-rot salts, ridgifying saturates and wetting agents, with unique alternating, transverse flutes at different angles. The design creates highly turbulent mixing between cooling water and air, enhancing evaporative efficiency and thus cooling results.Additionally the pads filter out particles as small as 10 microns, including most common allergens. Tests conducted by US Air Filter Test Laboratories in accordance with ASHRAE Standard 52-76 (dust spot efficiency test) found the largest percentage of upstream particles were less than 0.5 microns in size.

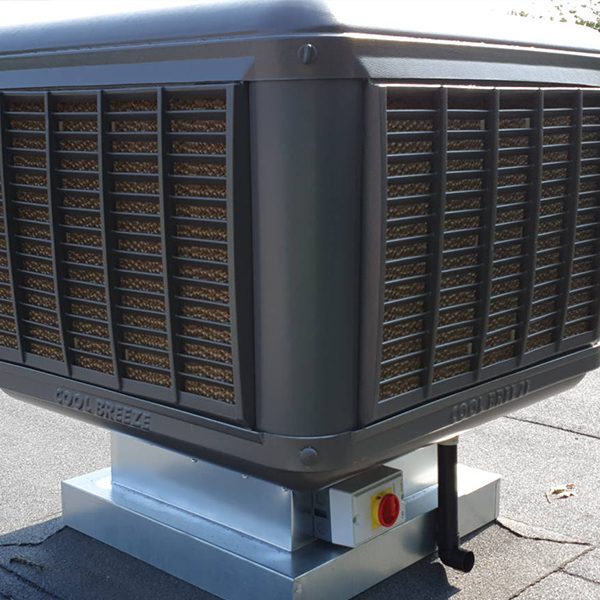

Take a closer look at the Maxima QMD230 housing.
You will see German engineered Luran S – UV protection for long life. This is super strong, impact resistant, UV stable and totally corrosion free. Just as you need for robust performance in a tough climate.

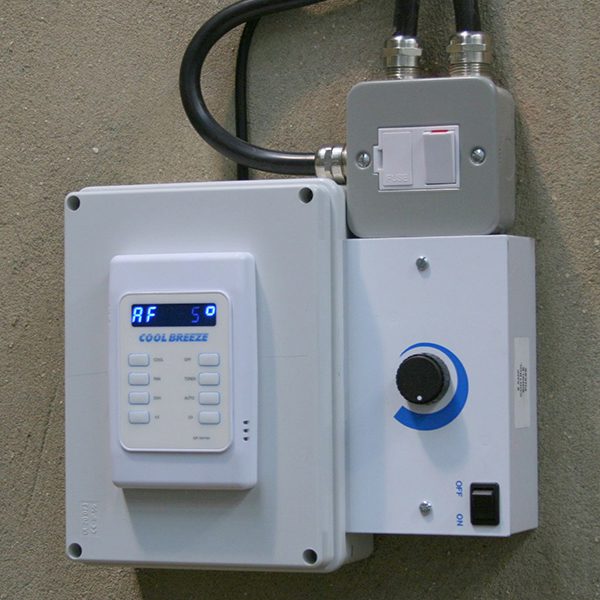

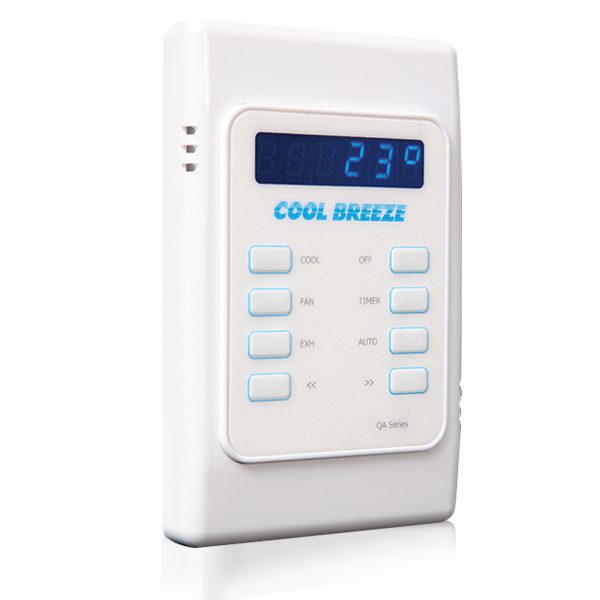

The Cool Breeze control system gives industry-leading system management.
Features of the new controller include:
- operator friendly
- fault diagnosis (water, pump etc)
- optional remote shutdown via BMS
- optional remote shutdown via timer
- optional humidity control

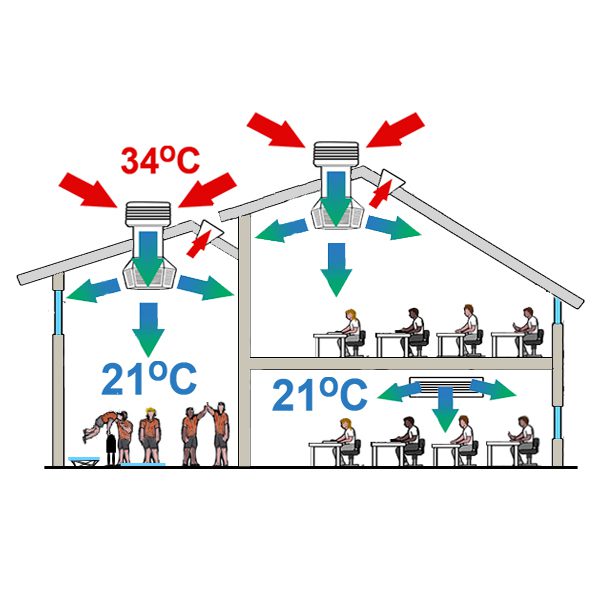

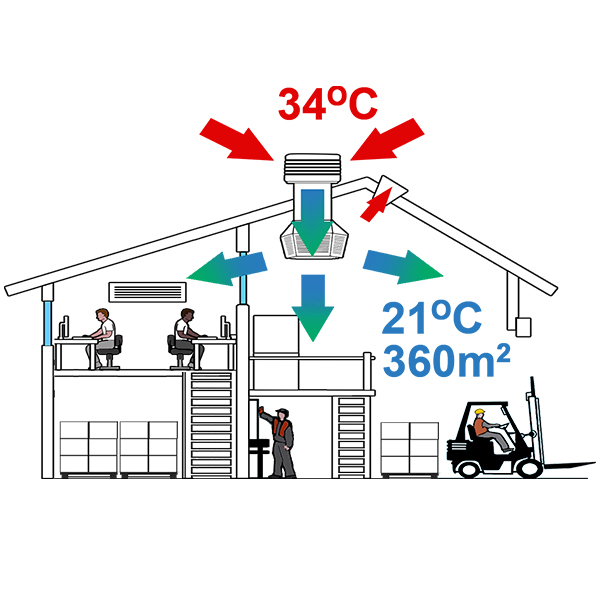

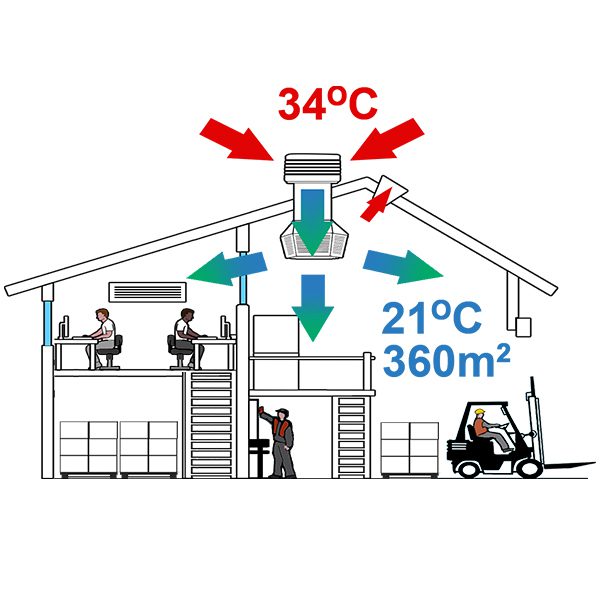

How does Evap Cooling Work?
Evaporative Cooling units work by controlling the temperature, movement, humidity, cleanliness and ventilation of the air inside a building.
Sometimes referred to as swamp coolers or simply evaporative air conditioning, these simple and highly effective units work by drawing a constant flow of fresh air over water-saturated pads. As the water evaporates from the pads, heat is removed from the air. The cooling process is much the same as the feeling you get at the seaside when a sea breeze passes over the ocean.
Cooling, Ventilation and Fresh Air

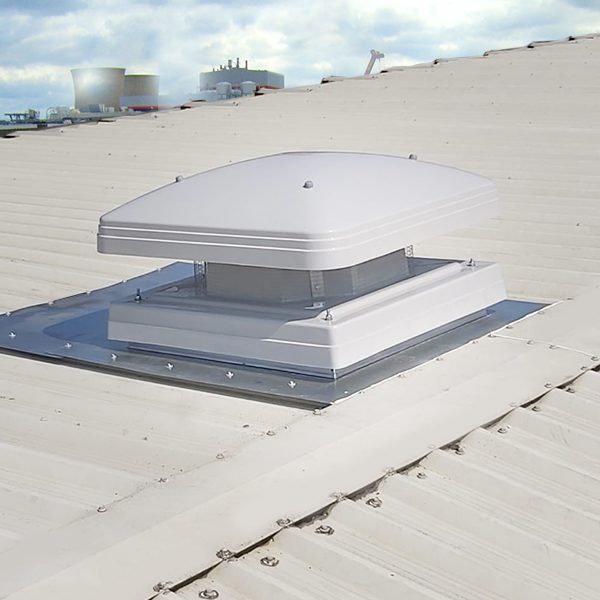

It is the best of both worlds. Not only do evap cooling units act as ‘air chillers’ and ventilate, they also filter dust and pollen, ensuring a breath-easy atmosphere. The constant air flow that is introduced to the premises displaces the hot, contaminated air, pushing it out through roof extract vents or open doors and windows.
Clean and Green
The great thing about this cooling and ventilation system is that it uses water as its cooling agent and not potentially harmful chemical refrigerants. No wonder it scores high for its environmental credentials.
Why Clean Air are the Natural Choice for Evaporative Cooling
Few cooling technologies in the workplace have been as revolutionary or important as evaporative cooling. Clean Air were one of the first HVAC companies in the UK to recognise how this simple technology would change the world of cooling – be it for factories, warehouses, offices, server rooms or sports centres.
The story began back in 1998 with Clean Air’s first installation. Since then it has perhaps installed more evaporative cooling units than any other HVAC company in the UK. The head start provided Clean Air with advantages. Not least the opportunity to work with various manufacturers and assist in the development of evaporative cooling technologies.
Twelve years ago we chose Air Group Australia, manufacturer of the legendary Cool Breeze evaporative cooler, as our preferred supplier and became the UK distributor.
The choice of Clean Air as the sole UK distributor for CoolBreeze was actually very easy for us. Clean Air’s experience and expertise in evaporative cooling technologies is immediately obvious.
From the earliest days Clean Air has been a leader in the UK and, justifiably, they have earned a formidable reputation not just for the sheer number of units they have installed, but also for their exacting standards on site.
As important is after sales care. Outstanding service and support is an essential element in our choice of partner.
Clean Air simply set such exemplary standards others are left to follow.
Dion McConnell, General Manager, Air Group Australia
Start your Evap Cooling
journey right now!
We will visit your site, assess your needs and recommend the right solution at a competitive price
Please note: This website page, links and downloads and the information contained therein will become obsolete or out of date with time. Product appearance and specifications are subject to change without notice. All images shown are for illustration purposes only and may not be an exact representation of the product. Please refer to our website usage terms and conditions. All trademarks and logos and the content within the video links that are shown on this website are acknowledged as the property of their respective owners and are used for identification and information purposes only.
* Please note: a) Internal temperature drop by up to 10 degrees C is an approximate figure and used as an example of typical performance – the temperature drop achieved will vary and depends upon a number of factors including the fabric of the building and use of the premises; b) fan performance as tested at BSRIA 6 June 2019 using CoolBreeze Maxima QMD230 (inverter motor) with a fan performance 10,781 m3/hr (100% fan speed corrected for standard temperature and pressure of 20 degrees C and 1013 mBar); c) prices and specifications are correct at time of publishing this web page and are subject to change without notification. Prices represent an indicative ‘from’ price for the purchase for a single air conditioner, evaporative cooling unit or heater within the indicated product categories (being air conditioning, evaporative air cooling, ventilation, or heating) and do not represent the price of any product(s) / product image(s) that may be shown within the associated product category/advertising panel; d) ‘including installation’ assumes a straight forward installation at its most simple, please refer to your quote for detail of the costs. Clean Air have tried to ensure the accuracy of the information, but no responsibility is accepted for errors, omissions, mis-statements or mistakes and will not be liable for any loss or damage suffered as a consequence of reliance on the information provided. Always refer to your quote for specific details of products. All goods are supplied subject to Company’s General Terms & Conditions of sale, copy available on request.
